Stock Small Compression Springs for Sale

Stock Small Compression Springs for Sale

Table of Contents

• Stock Small Compression Springs for Sale
• What is a Small Compression Spring?
• What are the Key Characteristics of a Small Compression Spring?

  • Outer Diameter (OD)
  • Wire Diameter
  • Free Length
  • Spring Rate (k)
• Calculating Spring Force (Hooke’s Law)
• Finding a Stock Spring with Spring Finder 5.0
• Verifying Spring Performance with the Online Spring Force Tester
• Making Spring Selection Easy

What is a Small Compression Spring?

Small compression springs are helical (coil) springs designed to compress under load and then push back to their original length. Despite their tiny size, these springs play important roles in countless everyday gadgets – from ballpoint pens and precision instruments to electronic buttons and toys. In many small devices, a little coil spring is hidden inside and is essential to the device’s function. When one of these springs wears out or gets lost, finding a suitable replacement becomes crucial. Luckily, companies like Acxess Spring offer thousands of stock small compression springs for sale, making it easy to find a match for your needs. This article will guide you through the basics of small compression springs and how to select or design the perfect spring using Acxess Spring’s online tools.

What are the Key Characteristics of Small Compression Springs?

To choose the right spring, it helps to understand the key characteristics and dimensions that define a compression spring. Here are some important terms (using English units such as inches for length and pounds-force for force):

Understanding these terms will help you compare springs and ensure a new spring will fit and perform correctly. For instance, if you need to replace a broken spring in a gadget, you’ll measure its wire diameter, outer diameter, and free length, and note how stiff it felt – then look for a stock spring with similar specs.

Calculating Spring Force (Hooke’s Law)

One handy formula to know is Hooke’s Law, which for springs is written as:

F = k × x

Where F is the force exerted by the spring (in pounds-force), k is the spring’s rate (in lb/in), and x is the deflection (in inches) from the spring’s free length. In simple terms, the more you compress the spring, the more force it pushes back with, linearly (as long as you stay within the spring’s elastic limit).

Example: Suppose you have a small spring, like Acxess Spring’s stock part number PC028-250-10000-MW-0750-C-N-IN, with a spring rate of 10.08848 lb/in. If you compress this spring by 0.25 inches (i.e. reduce its length by a quarter inch), it will exert a force of:

F = 10.08848 lb/in × 0.25 in = 2.5212 lb

approximately two and a half pounds of force pushing back. If you compress it further to 0.5 inches, the force would increase to 5 lb. This linear relationship helps in estimating whether a given spring can meet the force requirements in your project.

When using a spring in a device, you’ll often have a target force or a certain deflection in mind. By knowing k, you can calculate how the spring will behave. For example, if a button requires ~1.5 lb of force to press, you might choose a spring that will be compressed a certain amount under that load. (Of course, always ensure the spring is not compressed beyond its safe limit or “solid height”.)

Finding a Stock Spring with Spring Finder 5.0

Acxess Spring provides a very useful online tool called Spring Finder 5.0 to help you locate the right stock spring from their catalog. This tool lets you search through thousands of available springs by specifying the characteristics you need. Here’s a step-by-step guide to using Spring Finder 5.0 to find a small compression spring:

1.- Go to Spring Finder and Choose Spring Type: Navigate to the Spring Finder tool on Acxess Spring’s website (for example, via The Spring Store). The first step is to select your spring type. Since we need a compression spring, you would choose “Compression Spring” as the spring type​. (The tool also allows searching for extension or torsion springs, but compression is our focus here.)

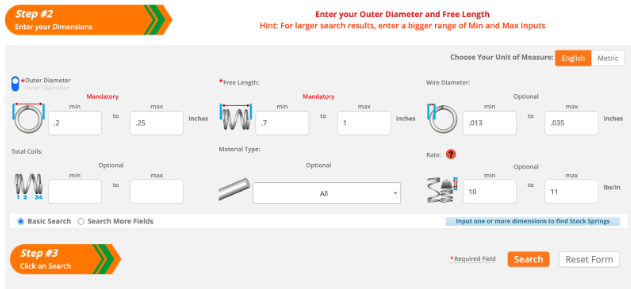

2.- Enter Key Dimensions and Specs: Input the main dimensions and requirements for your spring. At minimum, enter the outer diameter and free length of the spring you need, since these are crucial for fitting your application. You can also enter other parameters for a more precise search – for example, wire diameter range, spring rate, material type, or even the number of total coils. Each input field can accept a range (minimum and maximum) so the Spring Finder will include any springs whose specs fall in that range. A tip is to start with slightly broader ranges if you’re unsure, then you can narrow down if you get too many results. For instance, you might search for springs with OD between 0.2″ and 0.3″ and free length around 1″ ±0.1″. (You can even toggle between searching by Outer Diameter or Inner Diameter, thanks to Spring Finder’s ID/OD toggle feature​.)

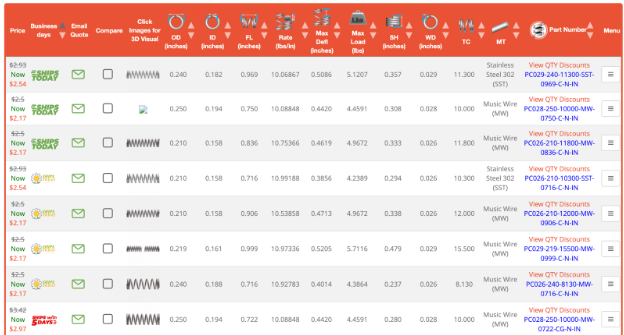

3.- Click “Search” to See Matching Springs: Once you’ve set the parameters, hit the Search button. The Spring Finder will scan the database and display matching springs. Uniquely, Spring Finder 5.0 shows results in two sets: one table (highlighted in orange or red) lists in-stock (standard) springs, and a second table (in blue) shows custom spring options generated to fit your criteria​. The stock table contains springs that are ready-made and ready to ship, while the custom table suggests springs that could be made to order if no stock item fits perfectly. Don’t be overwhelmed if there are many results – that’s a good thing because you have options to choose from!

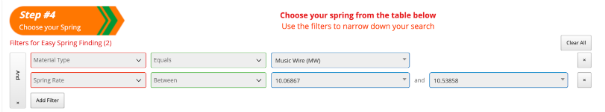

4.- Filter, Compare, and Choose a Spring: You can refine the results by adding filters (for example, you could filter by material or by spring rate to narrow it down)​. Look at the key specs of the springs in the list, such as their dimensions and spring rate, to find the closest match to what you need. When you spot a promising part number, click on that spring to view its details.

5.- Review Spring Details and Performance: Clicking a specific spring brings you to its product page. Here you’ll find detailed specifications and a 3D model of the spring. You can verify all the dimensions (OD, wire size, free length, etc.) and see the spring’s load and travel capabilities. Acxess Spring’s product page conveniently includes multiple tabs with information: one tab shows the specs and pricing, another provides a downloadable blueprint, and there’s even a tab for an Online Spring Force Tester simulation​. Using the integrated force tester (more on that tool shortly), you can virtually apply compression to the spring and see how it will perform under various loads. This helps confirm if the spring meets your requirements. If everything looks good, you can then enter the quantity you need and add the spring to your cart for purchase.

Using Spring Finder 5.0 greatly simplifies the process of finding a replacement or prototype spring. Instead of manually combing through catalog pages, you can input your specs and let the database do the work. It’s designed to be user-friendly for everyone – even if you’re not an engineer, the step-by-step interface makes spring selection more approachable. (And if you do get stuck, Acxess Spring’s support is available to help.)

Verifying Spring Performance with the Online Spring Force Tester

Whether you find a stock spring or design a custom one, it’s very useful to verify how that spring will perform under real-world use. This is where Acxess Spring’s Online Spring Force Tester (OSFT) comes in. The Online Spring Force Tester is an interactive simulation tool that lets you test a spring’s behavior virtually – you can compress (or extend, for other spring types) a spring on your screen and see how much force it produces at each point, and whether you are within the safe operating limits.

The OSFT is built right into the Spring Finder product pages and Spring Creator tool, so you can use it for any compression, torsion or extension spring you’re examining. When you open the force tester, you’ll usually see a 3D representation or animation of the spring. You can then input a deflection (compression amount) or set a load. The tool will display the corresponding force output. For example, let’s use OSFT to test the calculation we previously applied in the Spring Force example and compress Acxess Spring’s stock part number PC028-250-10000-MW-0750-C-N-IN by 0.25″ and see that the spring force is 2.52 lb at that point, following Hooke’s Law. This real-time visualization lets you witness Hooke’s Law in action – as you compress the spring, the force increases linearly​.

What’s more, the Online Spring Force Tester often highlights the safe range of the spring. Results will be shown in green when you are within the spring’s recommended operating length, and might turn red if you push it too far. This is essentially indicating how much deflection the spring can handle before risks like coil bind or material stress limits are reached​. By using the OSFT, you can answer questions like: Will this spring be strong enough at the compression I need? or How far can I compress this spring before it risks taking a set or getting damaged? – all before you purchase or install the spring. It’s an excellent confidence booster and can prevent trial-and-error with physical springs.

Encouragement: For anyone not deeply familiar with spring physics, the OSFT is a friendly way to validate a spring choice. You don’t have to crunch any numbers; just watch the spring’s behavior on screen. If the spring doesn’t meet the needed force at your required compression, you might need to pick a stiffer spring (higher k), or if it requires too much force, opt for a softer spring. The tool makes these adjustments much clearer. Acxess Spring provides this online tester for free, so take advantage of it – it’s like test-driving a spring virtually to ensure performance.

Making Spring Selection Easy

Choosing a small compression spring might seem daunting at first, but it doesn’t have to be. With the combination of readily available stock springs and user-friendly online tools, you can confidently find or design the right spring for your project. Acxess Spring’s extensive inventory of over forty-two thousand stock springs means there’s a very good chance the spring you need is already in stock and ready to ship. Plus, the Spring Finder 5.0 tool simplifies the search process by letting you filter by the exact dimensions and force characteristics you care about.

If you can’t find a suitable stock spring, no worries! Spring Creator 5.0 lets you create a custom spring design tailored to your needs, with instant feedback on how it’ll perform. And to top it off, the integrated Online Spring Force Tester lets you verify the spring’s performance virtually before you commit to a purchase, ensuring everything will work exactly how you need it to.

Here are the 5 key things you should know about selecting the perfect spring:

1. Understand Key Characteristics: Pay attention to the spring’s outer diameter, wire diameter, free length, and spring rate to ensure it’ll fit and function properly in your project.
2. Know Hooke’s Law: The force a spring exerts is proportional to how much you compress it. Using Hooke’s Law, you can calculate the force based on the spring’s rate and how far you compress it.
3. Use Spring Finder 5.0: Acxess Spring’s handy online tool makes finding the right spring easy. Just input your spring’s key specs, and the tool will do the rest!
4. Test with the Online Spring Force Tester: This tool allows you to virtually test how the spring will behave under compression, making sure it meets your requirements before you buy.
5. Create Custom Springs if Needed: If you don’t find an exact match, you can design your own spring with the Spring Creator 5.0 tool, and get instant feedback on its performance.

In short, whether you’re fixing a small device, building a prototype gadget, or working on a new invention, you now have the knowledge and resources to get the perfect small compression spring. With Acxess Spring’s stock catalog and online tools, even a beginner can navigate the process like a pro. Small springs can make a big difference in your project’s success, and now you’re all set to find the right one with ease. Happy spring hunting!

Where to Buy Small Compression Springs?

If you're looking to purchase small compression springs, TheSpringStore.com is an excellent resource. We offer over 42,000 stock spring designs, including miniature and small compression springs suitable for various applications such as electronics, toys, machinery, and medical equipment. Our user-friendly online catalog and Spring Finder tool make it easy to search for springs by dimensions like outer diameter, wire diameter, and free length. Additionally, our Spring Creator tool allows you to design custom springs and receive instant quotes. With high-quality materials and immediate shipping on in-stock items, TheSpringStore.com provides a convenient solution for your small compression spring needs.
